60 minutes fire rated glass (integrity and insulation) doors/windows/partitions/walls(EI60)
EI60 fire rated glass offers a critical barrier, providing 60 minutes of both integrity and insulation against fire, smoke, and dangerous heat transfer.
What is EI60 Fire Rated Glass?
EI60 fire rated glass is a specialized glazing product designed to provide a high level of fire protection in buildings. The "EI" classification, derived from European standards like EN 13501-2, signifies its dual capability:
- ✓ Integrity (E): For 60 minutes, the glass will remain intact, preventing the passage of flames and hot gases from the fire-affected side to the non-fire side. This stops the spread of fire and smoke.
- ✓ Insulation (I): Crucially, for 60 minutes, the glass significantly limits the temperature rise on the non-fire side. This means it acts as a thermal barrier, protecting occupants from radiant heat and preventing secondary ignition of combustible materials in adjacent areas.
This superior insulation performance is achieved through multi-layered glass constructions, often incorporating intumescent interlayers. These layers react to intense heat by expanding rapidly, forming an opaque, rigid foam that effectively blocks heat transfer and maintains the integrity of the barrier.
60-Minute Integrity and Insulation Fire-Rated Glass
Enhanced Safety
Provides 60 minutes of critical evacuation time.
Protects occupants from direct flame, smoke, and dangerous radiant heat.
Prevents flashover and secondary fires in adjacent compartments.
Compliance & Performance
Meets stringent European fire safety standards (e.g., EN 13501-2).
Tested as part of a complete system (glass, frame, fixings).
Offers excellent light transmission and aesthetic appeal.
Architectural Flexibility
Allows for large glazed areas while maintaining fire safety.
Enhances natural light and open aesthetics in designs.
Integrates seamlessly with modern building designs.
Versatility
Suitable for various internal and external applications.
Can be combined with other functionalities (e.g., acoustic, security).
Available in various thicknesses and finishes.
Property Protection
Limits fire spread, minimizing damage to structures and contents.
Reduces overall fire impact and potential repair costs.
Contributes to maintaining structural integrity during a fire event.
Long-Term Durability
Manufactured for long-lasting performance and stability.
Resistant to environmental factors and daily wear.
Low maintenance requirements for sustained effectiveness.
60-Minute Integrity and Insulation windows, doors, partitions and walls
Due to its robust integrity and insulation properties, EI60 fire rated glass is ideal for a wide range of critical applications where fire compartmentation and thermal protection are essential:
- ✓ Escape Routes & Corridors:Ensuring safe passage for occupants during evacuation by maintaining clear, protected pathways.

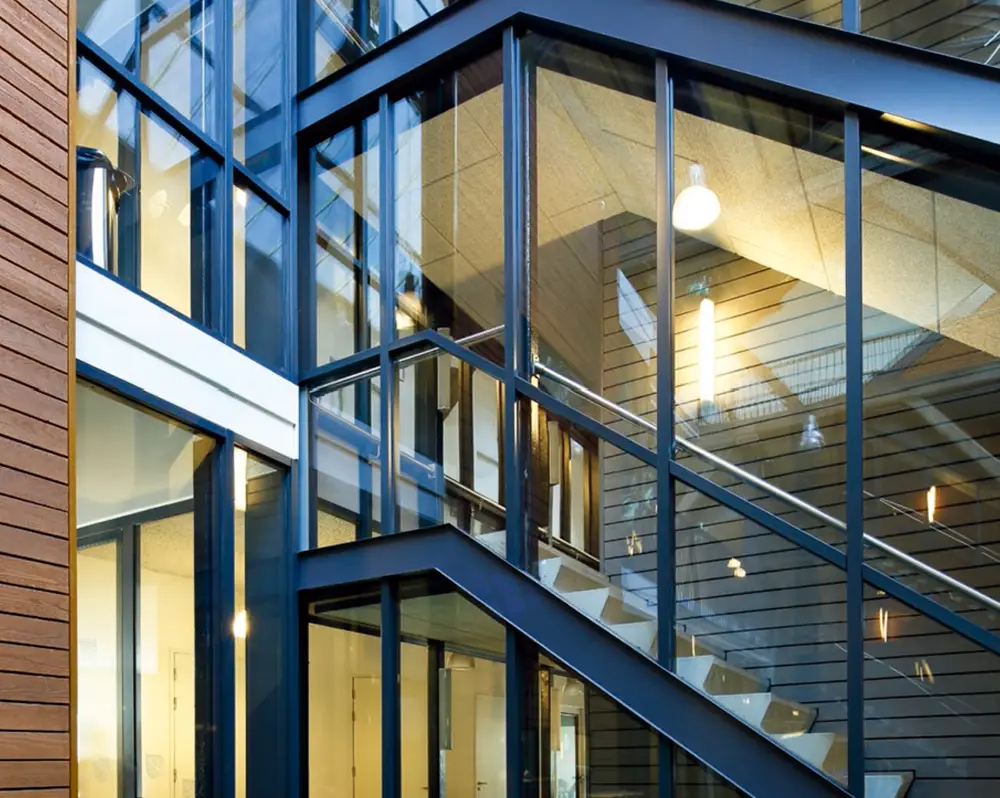

- ✓ Stairwells & Lobbies:Creating fire-resistant enclosures for vertical circulation, preventing fire and smoke spread between floors.

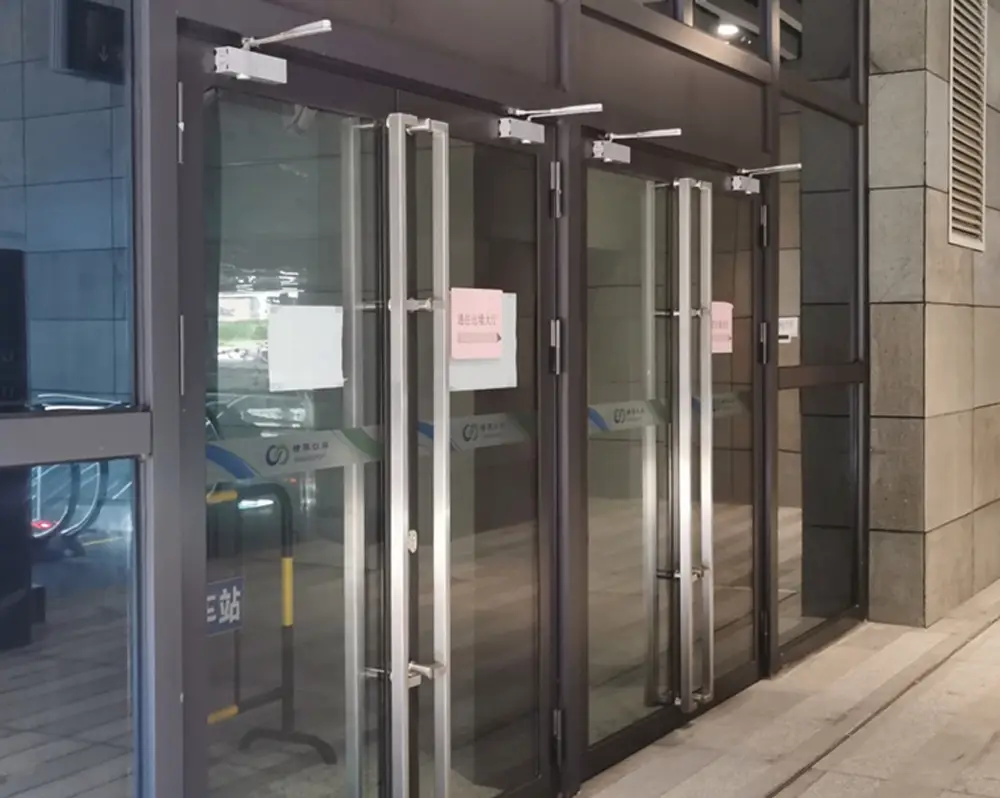

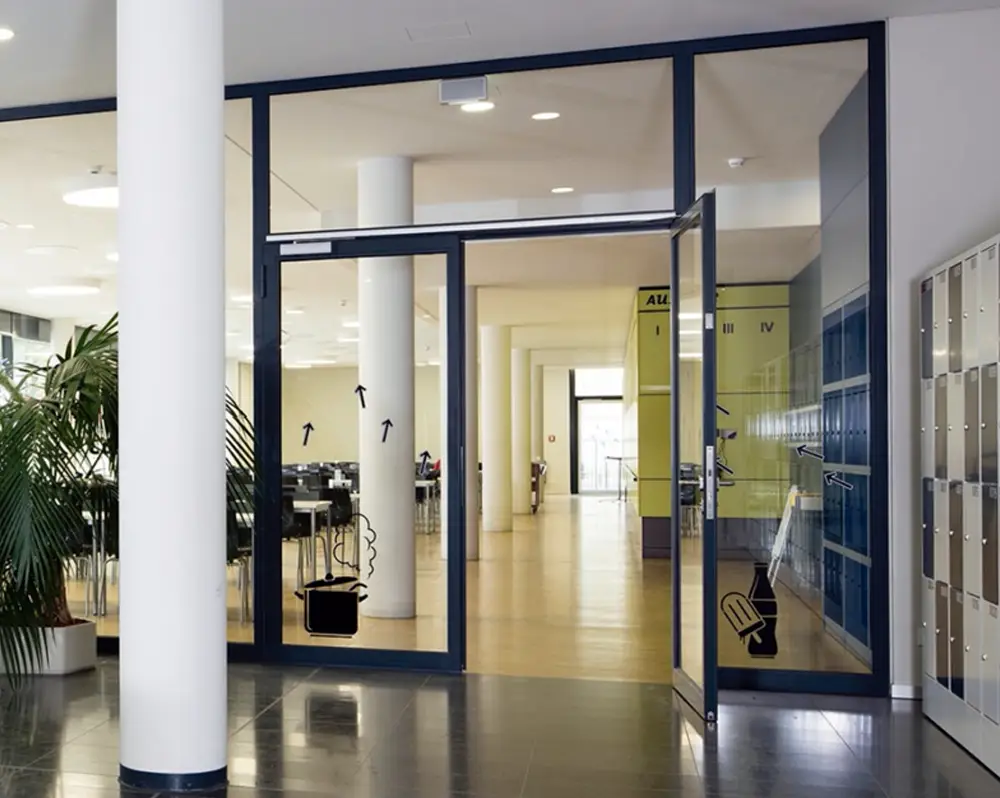

- ✓ Fire Doors & Partitions:Integrating into fire-rated door sets and internal partitions to form effective fire compartments.
- ✓ Data Centers & Server Rooms:Protecting sensitive equipment from fire and heat, minimizing business disruption.
- ✓ Hospitals & Healthcare Facilities:Providing safe zones for patients and staff, especially in critical care areas.
- ✓ Educational Institutions:Enhancing student and staff safety in classrooms, laboratories, and common areas.
- ✓ Commercial & Public Buildings:From offices to shopping malls, ensuring fire safety in high-traffic areas and critical zones.
- ✓ Industrial Facilities:Creating fire separation in manufacturing plants, warehouses, and control rooms.
