SINGLE LAYER FIRE-RATED GLASS
Single layer fire-rated glass ,monolithic fire-resistant glass, is a kind of special glass that is adopted the special process by chemically or physically treat to meets the requirements of the corresponding fire resistance level,such as EN standards,BS standards and ASTM standards etc. Single layer fire-rated glass is designed to provide integrity only, which means it prevents the passage of flames and hot gases but does not offer insulation against heat transfer. The glass is commonly used in areas where fire containment is necessary, but insulation against heat is not a priority. To ensure that there is enough time to escape and carry out rescue work when a fire occurs. Single layer fire-resistant glass does not have the effect of fire-resistance and heat insulation, so it ONLY matchs Class C and is the CLASS E fire-rated glass.
Features:
- ✓
Single layer fire protective glass is integrity glass,excellent optical quality and maximum light transmission.
- ✓ Single layer fire resistant glass is a special processed glass which has the function of fireproof integrity.
- ✓ Single layer fire protective glass has smoothly passed the states fire extinguishing systems test.
- ✓
Single layer fire protective glass not only has superb fire resisting performance but is extremely hard for glass.
It is 10 to 12 times stronger than ordinary glass of the same thickness,and 2 to 3times stronger than tempered glass.
- ✓
Fire-rated glass that has good performances still have the fireproof and burning prevention function in temperature above 1000 degree.
Applications:
- ✓ Safe exits in commercial building/office building.
- ✓ Residence/villa and rooming house.
- ✓ Residence/villa and rooming house.
- ✓ Entrance doors/windows.
- ✓ Warm house/ceiling/balustrade and louver.
- ✓ Curtain walls/ship windows and dome.
- ✓ Telephone booth and bus station.
Product:
The single layer fire-resistant glass has fire-resistant integrity and belongs to Class C (E) fire-resistant glass.
Different thickness of single layer fire resistant glass are supplied, such as 6, 8, 10&12mm to follow British standard BS476 PART22, BS EN 1364-1:1999, BS EN1634-1:2008 and other standards.
| Thickness(mm) |
Class |
Temperature of Fire(℃) |
| 6 |
E30,E60,E90 |
>1100 |
| 8 |
E30,E60,E90 |
>1100 |
| 10 |
E30,E60,E90 |
>1100 |
| 12 |
E30,E60,E90 |
>1100 |
VETROTECH PYROWISS
Clear fire-rated safety glass with high impact and mechanical strength for interior & exterior applications
PYROSWISS is the original clear, fire-protective glass technology with full safety glass characteristics. This tempered safety glass features a special edge treatment designed to withstand high thermal stress. This prevents early breakage due to fire, keeping the affected area sealed. Free from UV-sensitive interlayers or embedded wires, PYROSWISS provides high transparency and light transmission, offering design freedom for interior and exterior applications.
- Clear fire-rated safety glass maintains integrity for 20- or 45-minutes Starting at ¼ in thickness for 20 minute20-minute rating
- Impact Safety Rating: ANSI Z97.1, CPSC 16CFR 1201-CAT II, CAN/CGSB - 12.1-M90
- High light transmission values of up to 89%
- Lightweight for easy, secure handling and installation
- Economical, durable, and reliable
VETROTECH CONTRAFLAM
The most versatile solution for applications demanding maximum Fire-Resistive protection in the largest possible dimensions.
CONTRAFLAM is a single or multi-chamber fire-resistive glass made of two or more sheets of toughened safety glass. The cavity between the glass sheets is sealed to be completely moisture-resistant, is then filled with an environmentally friendly, transparent and UV-stable intumescent interlayer that reacts when exposed to fire. The level of fire resistance required determines the number of sheets of toughened safety glass and interlayers included.
In the event of fire, it offers full heat insulation for the compartmentalization of fire. This product satisfies the highest demands of fire protection while offering robust handling and UV stability, with numerous configurations available.
- Available in single, double, or triple glazing (IGU)
- Rated for full fire-resistance from 45 to 120 minutes
- Symmetrical 1(B)1 impact resistance (EN 12600)
- Extended exposure time of 5,000 hours UV stability versus standard 2,000 hours
- Large variety of low-E and solar control coatings
- Exceptional U values (double glazing ≥ 0.9 W/m²K, triple glazing ≥ 0.5 W/m²)
- Available in large dimensions
- Moisture- and pressure-resistant edge sealing for extended durability
- Excellent acoustic insulation properties
- Many design and comfort options
- Manufactured locally for fast delivery and reduced CO2 emissions
- Can serve as laminated safety glass
- Easy, secure handling and installation
VETROTECH CONTRAFLAM STRUCTURE
Butt-joint fire-resistant glazing system for interior & exterior applications (under specific conditions)

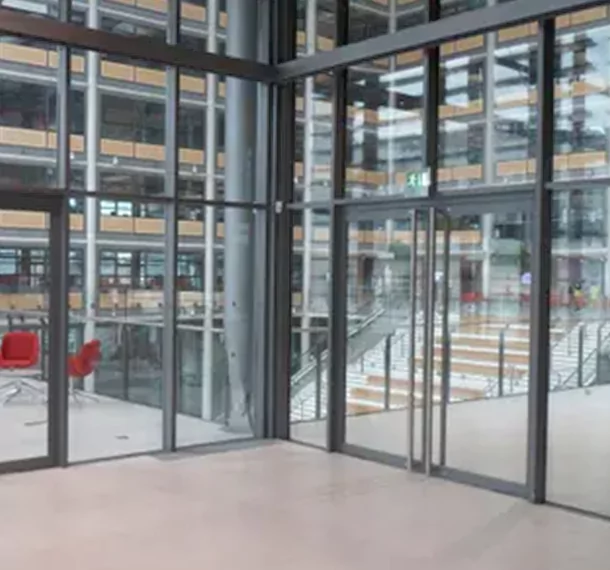

CONTRAFLAM Structure sets new standards in the design of transparent fire protection. The floor-to-ceiling glazing system provides a continuous, uninterrupted glass wall, joined only with silicone. Made of CONTRAFLAM fire-resistant glass, CONTRAFLAM Structure is engineered to achieve the mechanical resistance required to support interior wall line-loads and offer superior edge aesthetic.
- Available in single, double (DGU),
- Available in Fire-Resistive ratings for 60 and 120 minutes.
- Symmetrical impact resistance (ANSI Z97.1, CPSC 16CFR 1201-CAT II, CAN/CGSB - 12.1-M90 )
- Extended exposure time of 5,000 hours. Outstanding durability and UV-stability.
- Available in large dimensions of up to 138 1/2in exposed for 60 minute rating, 126in exposed for 120 minute rating.
- Visually continuous expanse of glass delivers maximum transparency
- Symmetrical butt-joint fire protection
- For interior and exterior applications* (*under specific conditions)
- Portrait and landscape applications tested
- Ceramic frit back-painted vertical edges in any colorSlim silicone joints in black
- Excellent acoustic insulation properties
